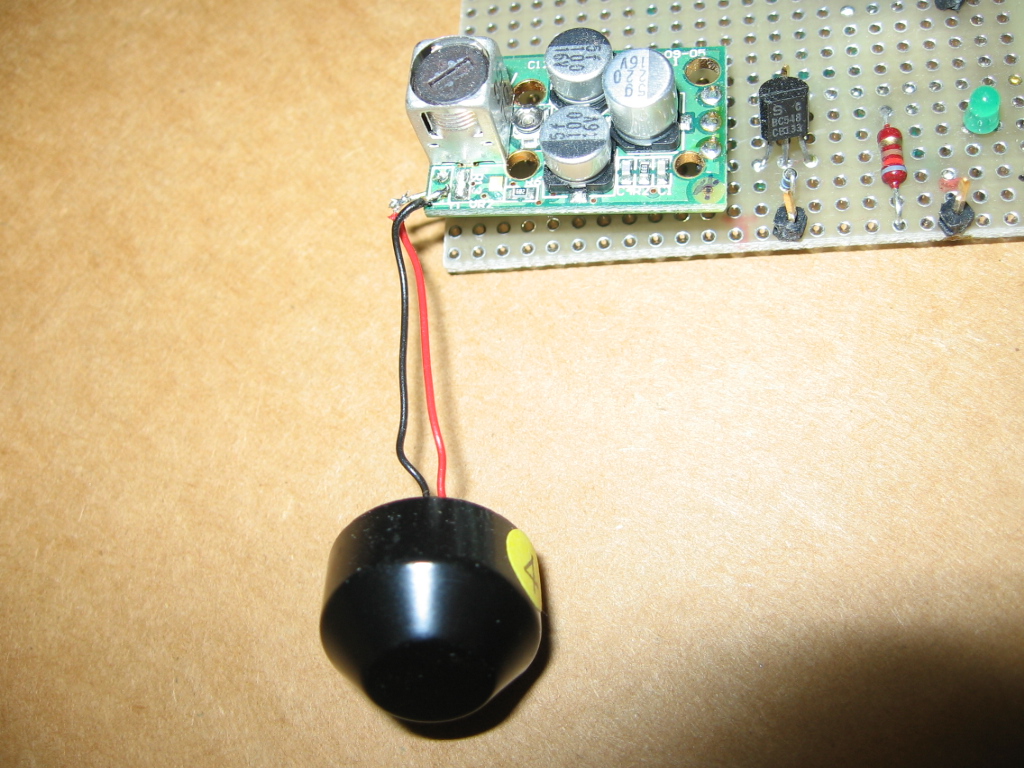

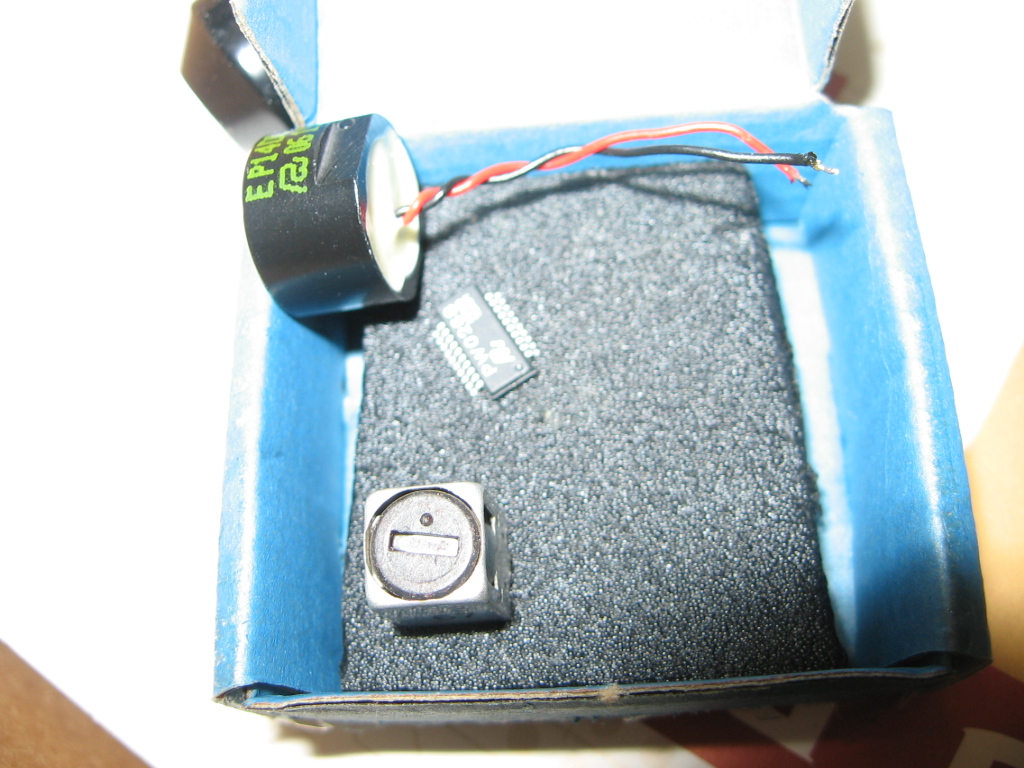

Abzugeben ist ein fertiges Modul SRM400 incl. 400EP14D Transducer (125 Grad ÖW), sowie zusätzlich als Ersatzteile oder zum Aufbau eines 2 Moduls: 1 Sonar Transducer 400EP18A - 85 Grad Öffnungswinkel 1 Sonar Ranging IC PW0268 1 Ultrasonic Matching Transformer Beschreibung: The SRM400 is a sonar ranging module utilizing our new developed Sonar Ranging IC, PW-0268, which can work with all our PT or EP type transducers. Features Operating Voltage: 6 – 10Vdc single source Operating Frequency: broadband output ranging up ... to 250KHz Built-in variable RC oscillator matching transducers ... with different frequencies High Gain Amplifier: varies with time over 32 steps Integrated Band Pass Filter: reduces external ... component count , Bi-direction I/O Pin: simplifies the control function for ...transmitting a pulse and receiving an echo An adjustable System Clock: enables the control of, ...the number of pulses transmitted, the slope of the ... variable gain amplifier, and the pulse repetition rate Board size: 27.9 * 18 mm (L*W) Specification Operation voltage DC6 - 10V Operation current <20 mA @ DC10V Oscillation frequency Variable RC oscillator Amplifier gain Pre-Amplifier 14 dB 2nd Stage Amplifier 30 dB Time controlled 32 steps main amplifier 35 dB max. Bandpass Filter Fc: 38KHz Band: 20KHz Loss: 1dB Driving voltage (no load)130Vpp, pulse width 0.5ms Bi-directional I/O Input signal open collector pull low Output 0.05*Vcc to 0.9*Vcc digital echo signals Measuring distance 25 – 150 cm Das Modul wurde zum Test auf eine Lochrasterplatine gelötet und mit einem C51 Controller zur Auswertung kurz anprogrammiert. Dargestellt wurde ein virtuelles Radarabbild sowie Daten zur Entfernungberechnung. Wegen Projektwechsel wurde das aber nicht weiterverfolgt. Lieferung ohne C51 Controller. Doku gibt es als PDF oder im Netz. Preis: 25 Eur + Porto Privatverkauf
