ATxmega128a1 und RFM70 Problem.
von Daniel S. (sany)

Lesenswert?
• ▲
▼
Hallo,

Habe hier ein Problem, ich krieg von dem RFM70 die ChipID nicht zurück,
habe den Code ursprünglich auf den Atxmega umgebaut... aber irgendwo
steckt da wohl noch ein Fehler?

Der ATxmega128a1 läuft mit internem 32MHZ takt.. :-)

Aktuell der Code:

1
/*

2
  Diese Library bassiert auf der Arduino RFM70 Library, ich habe sie lediglich so

3
  angepasst, dass man sie auf einem AVR und ohne zusätzliche Libs von Arduino

4
  verwenden kann.

5
6
  Es sind nur die wichtigstens Funktionen implementiert!

7
  Bei Fragen oder Anregungen:

8
  Mein Blog: http:://projects.web4clans.com

9
  Meine Email: daniel.weber@web4clans.com

10
11
*/

12
13
#include "rfm70.h"

14
#include "display/Graphics.h"

15
#include "display/display_lib.h"

16
///////////////////////////////////////////////////////////////////////////////

17
// Register initialization values and command macros //

18
///////////////////////////////////////////////////////////////////////////////

19


20
//************ Address definition commands

21
const uint8_t PROGMEM RFM70_cmd_adrRX0[] = { (0x20|0x0A), 0x34,0x43,0x10,0x10,0x01};

22
const uint8_t PROGMEM RFM70_cmd_adrTX[]  = { (0x20|0x10), 0x34,0x43,0x10,0x10,0x01};

23
const uint8_t PROGMEM RFM70_cmd_adrRX1[] = { (0x20|0x0B), 0x35,0x43,0x10,0x10,0x02};

24


25
//************ Bank0 register initialization commands

26
 const uint8_t PROGMEM RFM70_bank0Init[][2] = {

27
  // address data

28
  { (0x20|0x00), 0x0F }, //Disable CRC ,CRC=1byte, POWER UP, TX

29
  { (0x20|0x01), 0x3F }, //Enable auto acknowledgement data pipe0-5

30
  { (0x20|0x02), 0x3F }, //Enable RX Addresses pipe0-5

31
  { (0x20|0x03), 0x03 }, //RX/TX address field width 5byte

32
  { (0x20|0x04), 0x08 }, //x = 250 ms = 4000ms, y = 15 tries

33
  { (0x20|0x05), 0x17 }, //channel = 0x17

34
  { (0x20|0x06), 0x3F }, //air data rate-2M,out power 5dbm,setup LNA gain high (0dBM)

35
  { (0x20|0x07), 0x07 }, //

36
  { (0x20|0x08), 0x00 }, //

37
  { (0x20|0x09), 0x00 }, //

38
  { (0x20|0x0C), 0xc3 }, //LSB Addr pipe 2

39
  { (0x20|0x0D), 0xc4 }, //LSB Addr pipe 3

40
  { (0x20|0x0E), 0xc5 }, //LSB Addr pipe 4

41
  { (0x20|0x0F), 0xc6 }, //LSB Addr pipe 5

42
  { (0x20|0x11), 0x20 }, //Payload len pipe0

43
  { (0x20|0x12), 0x20 }, //Payload len pipe0

44
  { (0x20|0x13), 0x20 }, //Payload len pipe0

45
  { (0x20|0x14), 0x20 }, //Payload len pipe0

46
  { (0x20|0x15), 0x20 }, //Payload len pipe0

47
  { (0x20|0x16), 0x20 }, //Payload len pipe0

48
  { (0x20|0x17), 0x20 }, //Payload len pipe0

49
  { (0x20|0x1C), 0x3F }, //Enable dynamic payload legth data pipe0-5

50
  { (0x20|0x1D), 0x07 } //Enables Dynamic Payload Length,Enables Payload with ACK

51
};

52


53
//************ Bank1 register initialization commands

54
 const uint8_t PROGMEM RFM70_bank1Init[][5] = {

55
  // address data

56
  { (0x20|0x00), 0x40, 0x4B, 0x01, 0xE2 },

57
  { (0x20|0x01), 0xC0, 0x4B, 0x00, 0x00 },

58
  { (0x20|0x02), 0xD0, 0xFC, 0x8C, 0x02 },

59
  { (0x20|0x03), 0x99, 0x00, 0x39, 0x41 },

60
  { (0x20|0x04), 0xb9, 0x9E, 0x86, 0x0B }, // b9? f9?

61
  { (0x20|0x05), 0x24, 0x06, 0x7F, 0xA6 },

62
  { (0x20|0x06), 0x00, 0x00, 0x00, 0x00 },

63
  { (0x20|0x07), 0x00, 0x00, 0x00, 0x00 },

64
  { (0x20|0x08), 0x00, 0x00, 0x00, 0x00 },

65
  { (0x20|0x09), 0x00, 0x00, 0x00, 0x00 },

66
  { (0x20|0x0a), 0x00, 0x00, 0x00, 0x00 },

67
  { (0x20|0x0b), 0x00, 0x00, 0x00, 0x00 },

68
  { (0x20|0x0C), 0x00, 0x12, 0x73, 0x00 },

69
  { (0x20|0x0D), 0x36, 0xb4, 0x80, 0x00 }

70
};

71


72
//************ Bank1 register 14 initialization commands

73
 const uint8_t PROGMEM RFM70_bank1R0EInit[] = {

74
  // address Data...

75
  (0x20|0x0E), 0x41,0x20,0x08,0x04,0x81,0x20,0xCF,0xF7,0xFE,0xFF,0xFF

76
};

77
78
79
//************ other commands: { <command>, <data>, ... }

80
const uint8_t PROGMEM RFM70_cmd_switch_cfg[] = { 0x50, 0x53 }; // switch Register Bank

81
const uint8_t PROGMEM RFM70_cmd_flush_rx[] = { 0xe2, 0x00 }; // flush RX FIFO

82
const uint8_t PROGMEM RFM70_cmd_flush_tx[] = { 0xe1, 0x00 }; // flush TX FIFO

83
const uint8_t PROGMEM RFM70_cmd_activate[] = { 0x50, 0x73 }; // Activation command

84
const uint8_t PROGMEM RFM70_cmd_tog1[]={ (0x20|0x04), 0xd9 | 0x06, 0x9e, 0x86, 0x0b }; //assosciated with set1[4]!

85
const uint8_t PROGMEM RFM70_cmd_tog2[]={ (0x20|0x04), 0xd9 & ~0x06, 0x9e, 0x86, 0x0b}; //assosciated with set1[4]!

86
87
88
89
void initSPI(uint8_t clk_div)

90
{

91
  // set the pin direction to output

92
  PORTC.DIRSET = (1<<SCK) | (1<<MOSI) | (1<<CSN); // Ausgang

93
  PORTC.OUTCLR = (1<<MOSI)|(1<<SCK); // Set to Low

94


95


96
  // chip select to high

97
  PORTC.OUTSET = (1<<CSN);

98


99
  SPIC.CTRL = SPI_PRESCALER_DIV4_gc | SPI_MODE_0_gc | SPI_MODE_1_gc| (1<<SPI_ENABLE_bp) | (1<<SPI_MASTER_bp);

100
  SPIC.INTCTRL = SPI_INTLVL_OFF_gc;

101
  // other to low

102


103
  _delay_ms(RFM70_BEGIN_INIT_WAIT_MS);

104
  initRegisters();

105
}

106
107
void initHardware(uint8_t irq)

108
{

109
  // set the CE ddr to output

110
  PORTC.DIRSET = (1<<CE);

111


112
  //DDR_SPI |= CE;

113
  // and set it to low

114
  //PORT_SPI &=~CE;

115
  PORTC.OUTCLR = (1<<CE);

116


117
  if (irq != -1)

118
      PORTC.DIR &=~ (1<<IRQ);

119
120
121
}

122
123
void initRegisters(void)

124
{

125
    // init bank 0 registers

126
    selectBank(0);

127
128
  for (int i = 0; i < 20; i++)

129
      writeRegVal(pgm_read_byte(&RFM70_bank0Init[i][0]), pgm_read_byte(&RFM70_bank0Init[i][1]));

130
131
132
    // init address registers in bank 0

133
    writeRegPgmBuf((uint8_t *)RFM70_cmd_adrRX0, sizeof(RFM70_cmd_adrRX0));

134
    writeRegPgmBuf((uint8_t *)RFM70_cmd_adrRX1, sizeof(RFM70_cmd_adrRX1));

135
    writeRegPgmBuf((uint8_t *)RFM70_cmd_adrTX, sizeof(RFM70_cmd_adrTX));

136
137
  // activate Feature register

138
    if(!readRegVal(RFM70_REG_FEATURE))

139
      writeRegPgmBuf((uint8_t *)RFM70_cmd_activate, sizeof(RFM70_cmd_activate));

140
141
  // now set Registers 1D and 1C

142
    writeRegVal(pgm_read_byte(&RFM70_bank0Init[22][0]), pgm_read_byte(&RFM70_bank0Init[22][1]));

143
    writeRegVal(pgm_read_byte(&RFM70_bank0Init[21][0]), pgm_read_byte(&RFM70_bank0Init[21][1]));

144
145
    // init bank 1 registers

146
    selectBank(1);

147
148
    for (int i=0; i < 14; i++)

149
      writeRegPgmBuf((uint8_t *)RFM70_bank1Init[i], sizeof(RFM70_bank1Init[i]));

150
151
  // set ramp curve

152
    writeRegPgmBuf((uint8_t *)RFM70_bank1R0EInit, sizeof(RFM70_bank1R0EInit));

153
154
155
    // do we have to toggle some bits here like in the example code?

156
    writeRegPgmBuf((uint8_t *)RFM70_cmd_tog1, sizeof(RFM70_cmd_tog1));

157
    writeRegPgmBuf((uint8_t *)RFM70_cmd_tog2, sizeof(RFM70_cmd_tog2));

158
159
  _delay_ms(RFM70_END_INIT_WAIT_MS);

160
161
    //Check the ChipID

162
    if (readRegVal(0x08) != 0x63)

163
      debug(RFM70_DEBUG_WRONG_CHIP_ID);

164
  else

165
  ScrollText("load rfm70 register successful\n", to_rgb565(255,255,255));

166
167
    selectBank(0);

168
  setModeRX();

169
}

170
171
void Begin(void)

172
{

173
  setBegin(-1, RFM77_DEFAULT_SPI_CLOCK_DIV);

174
}

175
176
177
void setBegin(uint8_t irq, uint8_t clk_div)

178
{

179
    initHardware(irq);

180
    initSPI(clk_div);

181
    //_delay_ms(RFM70_BEGIN_INIT_WAIT_MS);

182
    //initRegisters();

183
 }

184
185
186
187
uint8_t transmitSPI(uint8_t val)

188
{

189
  SPIC.DATA = val;

190
  while (!(SPIC.STATUS & (1<<SPI_IF_bp)))

191
    ;

192
  return SPIC.DATA;

193
}

194
195
void selectBank(uint8_t bank)

196
{

197
    uint8_t tmp = readRegVal(0x07) & 0x80;

198
    if(bank)

199
  {

200
      if(!tmp)

201
        writeRegPgmBuf((uint8_t *)RFM70_cmd_switch_cfg, sizeof(RFM70_cmd_switch_cfg));

202
    }

203
    else

204
  {

205
      if(tmp)

206
          writeRegPgmBuf((uint8_t *)RFM70_cmd_switch_cfg, sizeof(RFM70_cmd_switch_cfg));

207
    }

208
}

209
210
void setMode(uint8_t mode)

211
{

212
  if (mode == 1)

213
    setModeRX();

214
  else

215
    setModeTX();

216
}

217
218
219
void setModeRX(void)

220
{

221
  uint8_t val;

222
223
  writeRegPgmBuf((uint8_t *)RFM70_cmd_flush_rx, sizeof(RFM70_cmd_flush_rx)); // Flush RX FIFO

224
  val = readRegVal(RFM70_REG_STATUS); // Read Status

225
  writeRegVal(RFM70_CMD_WRITE_REG | RFM70_REG_STATUS, val); // Reset IRQ bits

226
  PORT_SPI &=~ (1<<CE); // RFM chip disable

227
  // set PRIM_RX bit to 1

228
  val=readRegVal(RFM70_REG_CONFIG);

229
  val |= RFM70_PIN_PRIM_RX;

230
  writeRegVal(RFM70_CMD_WRITE_REG | RFM70_REG_CONFIG, val);

231
  PORT_SPI |= (1<<CE); // RFM chip enable

232
}

233
234
235
void setModeTX(void)

236
{

237
    uint8_t val;

238
239
    writeRegPgmBuf((uint8_t *)RFM70_cmd_flush_tx, sizeof(RFM70_cmd_flush_tx)); // Flush TX FIFO

240
    PORT_SPI &=~ (1<<CE); // disable rfm70

241
    // set PRIM_RX bit to 0

242
    val=readRegVal(RFM70_REG_CONFIG);

243
    val &= ~RFM70_PIN_PRIM_RX;

244
    writeRegVal(RFM70_CMD_WRITE_REG | RFM70_REG_CONFIG, val);

245
    PORT_SPI |= (1<<CE); // RFM chip enable

246
}

247
248
uint8_t getMode(void)

249
{

250
  return readRegVal(RFM70_REG_CONFIG) & RFM70_PIN_PRIM_RX;

251
}

252
253
254
void setChannel(uint8_t cnum)

255
{

256
  writeRegVal( RFM70_CMD_WRITE_REG | RFM70_REG_RF_CH, cnum);

257
}

258
259
uint8_t getChannel(void)

260
{

261
  return readRegVal(RFM70_REG_RF_CH);

262
}

263
264
265
uint8_t configRxPipe(uint8_t pipe_nr, uint8_t * adr, uint8_t plLen, uint8_t en_aa)

266
{

267
268
    uint8_t tmp;

269
    uint8_t nr = pipe_nr -1;

270


271
    if(plLen > 32 || nr > 5 || en_aa > 1)

272
      return 0;

273
274
    // write address

275
    if(nr<2)      // full length for rx pipe 0 an 1

276
      writeRegCmdBuf(RFM70_CMD_WRITE_REG | (RFM70_REG_RX_ADDR_P0 + nr), adr, sizeof(adr));

277
    else // only LSB for pipes 2..5

278
      writeRegVal(RFM70_CMD_WRITE_REG | (RFM70_REG_RX_ADDR_P0 + nr), adr[0]); //ODO:check this

279


280
    // static

281
    if (plLen) {

282
      // set payload len

283
      writeRegVal(RFM70_CMD_WRITE_REG | (RFM70_REG_RX_PW_P0 + nr), plLen);

284
          // set EN_AA bit

285
        tmp = readRegVal(RFM70_REG_EN_AA);

286
          if (en_aa)

287
              tmp |= 1 << nr;

288
          else

289
                tmp &= ~(1 << nr);

290
        writeRegVal(RFM70_CMD_WRITE_REG | RFM70_REG_EN_AA, tmp);

291
        // clear DPL bit

292
        tmp = readRegVal(RFM70_REG_DYNPD);

293
        tmp &= ~(1 << nr);

294
        writeRegVal(RFM70_CMD_WRITE_REG | RFM70_REG_DYNPD, tmp);

295
        // set Enable pipe bit

296
        enableRxPipe(nr);

297
  }

298
    // dynamic

299
    else

300
  {

301
        // set payload len to default

302
        writeRegVal(RFM70_CMD_WRITE_REG | (RFM70_REG_RX_PW_P0 + nr), 0x20);

303
          // set EN_AA bit

304
          tmp = readRegVal(RFM70_REG_EN_AA);

305
          tmp |= 1 << nr;

306
          writeRegVal(RFM70_CMD_WRITE_REG | RFM70_REG_EN_AA, tmp);

307
          // set DPL bit

308
          tmp = readRegVal(RFM70_REG_DYNPD);

309
          tmp |= 1 << nr;

310
          writeRegVal(RFM70_CMD_WRITE_REG | RFM70_REG_DYNPD, tmp);

311
          // set Enable pipe bit

312
          enableRxPipe(nr);

313
    }

314
  return 1;

315
}

316
317
void enableRxPipe(uint8_t pipe_nr)

318
{

319
    uint8_t nr = pipe_nr - 1;

320
    if (nr > 5) return;

321
    uint8_t tmp;

322
    // set Enable pipe bit

323
    tmp = readRegVal(RFM70_REG_EN_RXADDR);

324
    tmp |= 1 << nr;

325
    writeRegVal(RFM70_CMD_WRITE_REG | RFM70_REG_EN_RXADDR, tmp);

326
}

327
328
void disableRxPipe(uint8_t pipe_nr)

329
{

330
  uint8_t nr = pipe_nr - 1;

331
  if (nr > 5) return;

332
  uint8_t tmp;

333
  // set Enable pipe bit

334
  tmp = readRegVal(RFM70_REG_EN_RXADDR);

335
  tmp &= ~(1 << nr);

336
  writeRegVal(RFM70_CMD_WRITE_REG | RFM70_REG_EN_RXADDR, tmp);

337
338
}

339
340
void configTxPipe(uint8_t * adr, uint8_t pltype)

341
{

342
  // write TX address

343
  writeRegCmdBuf(RFM70_CMD_WRITE_REG | RFM70_REG_TX_ADDR, adr, sizeof(adr));

344
  // write RX0 address

345
  writeRegCmdBuf(RFM70_CMD_WRITE_REG | RFM70_REG_RX_ADDR_P0, adr, sizeof(adr));

346
  // set static or dynamic payload

347
  uint8_t tmp;

348
  tmp = readRegVal(RFM70_REG_DYNPD);

349
  if(pltype == TX_DPL) // dynamic

350
        tmp |= 1;

351
  else

352
    tmp &= ~(1 << 0);

353
  writeRegVal(RFM70_CMD_WRITE_REG | RFM70_REG_DYNPD, tmp);

354
}

355
356
uint8_t sendPayload(uint8_t * payload, uint8_t len, uint8_t toAck)  // choose 0=nAck, 1=AckRequest

357
{

358


359
    // check TX_FIFO

360
    uint8_t status;

361
    status = readRegVal(RFM70_REG_FIFO_STATUS);

362
    if (status & RFM70_FIFO_STATUS_TX_FULL)

363
  {

364
      debug(RFM70_DEBUG_FIFO_FULL);

365
      return 0;

366
    }

367
368
    // send payload

369
  PORTC.DIRSET &=~ (1<<CSN);

370
    _delay_ms(RFM70_CS_DELAY);

371
    if(toAck == -1)

372
      transmitSPI(RFM70_CMD_W_ACK_PAYLOAD);

373
    else if (toAck == 0)

374
      transmitSPI(RFM70_CMD_W_TX_PAYLOAD_NOACK);

375
    else

376
      transmitSPI(RFM70_CMD_WR_TX_PLOAD);

377
    while(len--)

378
  {

379
      transmitSPI(*(payload++));

380
    //ScrollText(*payload, to_rgb565(255,255,255));

381
    }

382
  PORTC.OUTSET = (1<<CSN);

383
    _delay_ms(RFM70_CS_DELAY);

384
  //PORTA ^= (1<<PA4);

385
    return 1;

386
}

387
388
uint8_t receivePayload(uint8_t *payload)

389
{

390
    uint8_t len;

391
    // check RX_FIFO

392
    uint8_t status;

393
    status = readRegVal(RFM70_REG_STATUS);

394
    if (status & RFM70_IRQ_STATUS_RX_DR) { // RX_DR

395
    //PORTA ^= (1<<PA4);

396
      //while(1) {

397
        uint8_t fifo_sta;

398
        len = readRegVal(RFM70_CMD_RX_PL_WID); // Payload width

399
        readRegBuf(RFM70_CMD_RD_RX_PLOAD, payload, len);

400
        fifo_sta = readRegVal(RFM70_REG_FIFO_STATUS);

401
        //if (fifo_sta & RFM70_FIFO_STATUS_RX_EMPTY) break; // read until RX_FIFO empty

402
      //}

403


404
        if (fifo_sta & RFM70_FIFO_STATUS_RX_EMPTY) {

405
          status|= 0x40 & 0xCF; // clear status bit rx_dr

406
        writeRegVal(RFM70_CMD_WRITE_REG | RFM70_REG_STATUS, status);

407
        }

408
      return len;

409
    }

410
    else

411
  {

412


413
      return 0;

414
  }

415
}

416
417
418
void flushTxFIFO()

419
{

420
  writeRegPgmBuf((uint8_t *)RFM70_cmd_flush_tx, sizeof(RFM70_cmd_flush_tx)); // Flush TX FIFO

421
}

422
423
void flushRxFIFO()

424
{

425
  writeRegPgmBuf((uint8_t *)RFM70_cmd_flush_rx, sizeof(RFM70_cmd_flush_rx)); // Flush RX FIFO

426
}

427
428
429
430
431
432
uint8_t readRegVal(uint8_t cmd)

433
{

434
    uint8_t res;

435
  PORTC.DIRSET &=~ (1<<CSN);

436
    _delay_ms(RFM70_CS_DELAY);

437
438
    transmitSPI(cmd);

439
440
    res=transmitSPI(0);

441
    PORTC.OUTSET = (1<<CSN);

442
    _delay_ms(RFM70_CS_DELAY);

443
    return res;

444
}

445
446
uint8_t writeRegVal(uint8_t cmd, uint8_t val)

447
{

448
  PORTC.DIRSET &=~ (1<<CSN);

449
  _delay_ms(RFM70_CS_DELAY);

450
  transmitSPI(cmd);

451
  transmitSPI(val);

452
  PORTC.OUTSET = (1<<CSN);

453
  _delay_ms(RFM70_CS_DELAY);

454
  return 1;

455
}

456
457
void readRegBuf(uint8_t reg, uint8_t * buf, uint8_t len)

458
{

459
    uint8_t status, byte_ctr;

460
    PORTC.DIRSET &=~ (1<<CSN);

461
    _delay_ms(RFM70_CS_DELAY);

462
    status = transmitSPI(reg); // Select register to write, and read status UINT8

463
    for(byte_ctr = 0; byte_ctr < len; byte_ctr++)

464
       buf[byte_ctr] = transmitSPI(0); // Perform SPI_RW to read UINT8 from RFM70

465
    PORTC.OUTSET = (1<<CSN);

466
    _delay_ms(RFM70_CS_DELAY);

467
}

468
469
470
471
uint8_t writeRegPgmBuf(uint8_t * cmdbuf, uint8_t len)

472
{

473
  PORTC.DIRSET &=~ (1<<CSN);

474
  _delay_ms(RFM70_CS_DELAY);

475
  while(len--) {

476
    transmitSPI(pgm_read_byte(cmdbuf++));

477
  }

478
  PORTC.OUTSET = (1<<CSN);

479
  _delay_ms(RFM70_CS_DELAY);

480
  return 1;

481
}

482
483
uint8_t writeRegCmdBuf(uint8_t cmd, uint8_t * buf, uint8_t len)

484
{

485
    PORTC.DIRSET &=~ (1<<CSN);

486
    _delay_ms(RFM70_CS_DELAY);

487
    transmitSPI(cmd);

488
    while(len--)

489
  {

490
      transmitSPI(*(buf++));

491
    }

492
    PORTC.OUTSET = (1<<CSN);

493
    _delay_ms(RFM70_CS_DELAY);

494
  return 1;

495
}

496
497
void configRfPower(uint8_t pwr)

498
{

499
  if (pwr > 3) return;

500
  uint8_t tmp = readRegVal(RFM70_REG_RF_SETUP);

501
  tmp &= 0xF9;

502
  tmp |= pwr << 1;

503
  writeRegVal(RFM70_CMD_WRITE_REG | RFM70_REG_RF_SETUP, tmp);

504
}

505
506
507
508
509
void debug(uint8_t token)

510
{

511
  switch(token)

512
  {

513
    case 0x01:

514
    ScrollText("rfm error: the reseive chip id is invalid!\n", to_rgb565(255,255,255));

515
    break;

516
517
    case 0x02:

518
    ScrollText("rfm error: the fifo is full!\n", to_rgb565(255,255,255));

519
    break;

520
  }

521
}

522
523
void spiSetClockDivider(uint8_t rate)

524
{

525
  //SPIC.CTRL = (SPIC.CTRL & ~SPI_CLOCK_MASK) | (rate & SPI_CLOCK_MASK);

526
  //SPIC.STATUS = (SPIC.STATUS & ~SPI_2XCLOCK_MASK) | ((rate >> 2) & SPI_2XCLOCK_MASK);

527
}


in diesem Falle kriege ich leider nur chip id is invalid..

Wäre um hilfe dankbar :-)

Grüße,
daniel











    Beitrag melden Bearbeiten Thread verschieben Thread sperren Anmeldepflicht aktivieren Anpinnen Thread löschen Thread mit anderem zusammenführen Markierten Text zitieren Antwort Antwort mit Zitat
















    Re: ATxmega128a1 und RFM70 Problem.







      von

        Timmo H.
        (masterfx)
























  Lesenswert?


  •

  ▲


  ▼









Also ich arbeite mit dem RFM70 und NRF24L01 mit folgendem mode:
SPIC.CTRL = (1<<SPI_MASTER_bp) | (1<<SPI_ENABLE_bp) |
(1<<SPI_PRESCALER1_bp);
Also nicht MODE[1:0] = 11











    Beitrag melden Bearbeiten Löschen Markierten Text zitieren Antwort Antwort mit Zitat
















    Re: ATxmega128a1 und RFM70 Problem.







      von

        Daniel S.
        (sany)
























  Lesenswert?


  •

  ▲


  ▼









Hallo,

Also auch mit deinem SPI Init, bleibt die Chip ID falsch :/

Gruß,
Daniel











    Beitrag melden Bearbeiten Löschen Markierten Text zitieren Antwort Antwort mit Zitat
















    Re: ATxmega128a1 und RFM70 Problem.







      von

        Timmo H.
        (masterfx)
























  Lesenswert?


  •

  ▲


  ▼









Falsch heisst du liest zumindest etwas aus was !=0xFF oder so ist?

Achja und was soll das hier: ( PORTC.DIRSET &=~ (1<<CSN);)
Damit setzt du natürlich alle PORT-Pins außer CSN auf Output. Du setzt
ihn aber nie den CSN wieder auf output. Das kann so also nicht gehen.

Ich mache das immer so:
#define CSN_ON()  PORTC.OUTCLR = (1<<PIN4)
#define CSN_OFF()  PORTC.OUTSET = (1<<PIN4)











    Beitrag melden Bearbeiten Löschen Markierten Text zitieren Antwort Antwort mit Zitat
















    Re: ATxmega128a1 und RFM70 Problem.







      von

        Timmo H.
        (masterfx)
























  Lesenswert?


  •

  ▲


  ▼









Wobei der CSN natürlich Output bleibt, aber du setzt ihn nicht wie
eigentlich gewollt auf low.











    Beitrag melden Bearbeiten Löschen Markierten Text zitieren Antwort Antwort mit Zitat
















    Re: ATxmega128a1 und RFM70 Problem.







      von

        Daniel S.
        (sany)






















      Angehängte Dateien:












  Lesenswert?


  •

  ▲


  ▼









Hallo,

Sorry war mein Fehler, hatte das bereits umprogrammiert ;-)

Nun aber der aktuelle Sourcecode, aktuell funktioniert die
Initialisierung per SPI und die ChipID ist auch korrekt... nun habe ich
das Problem das er mir keine Daten empfängt, kann das am Interupt evtl.
liegen?

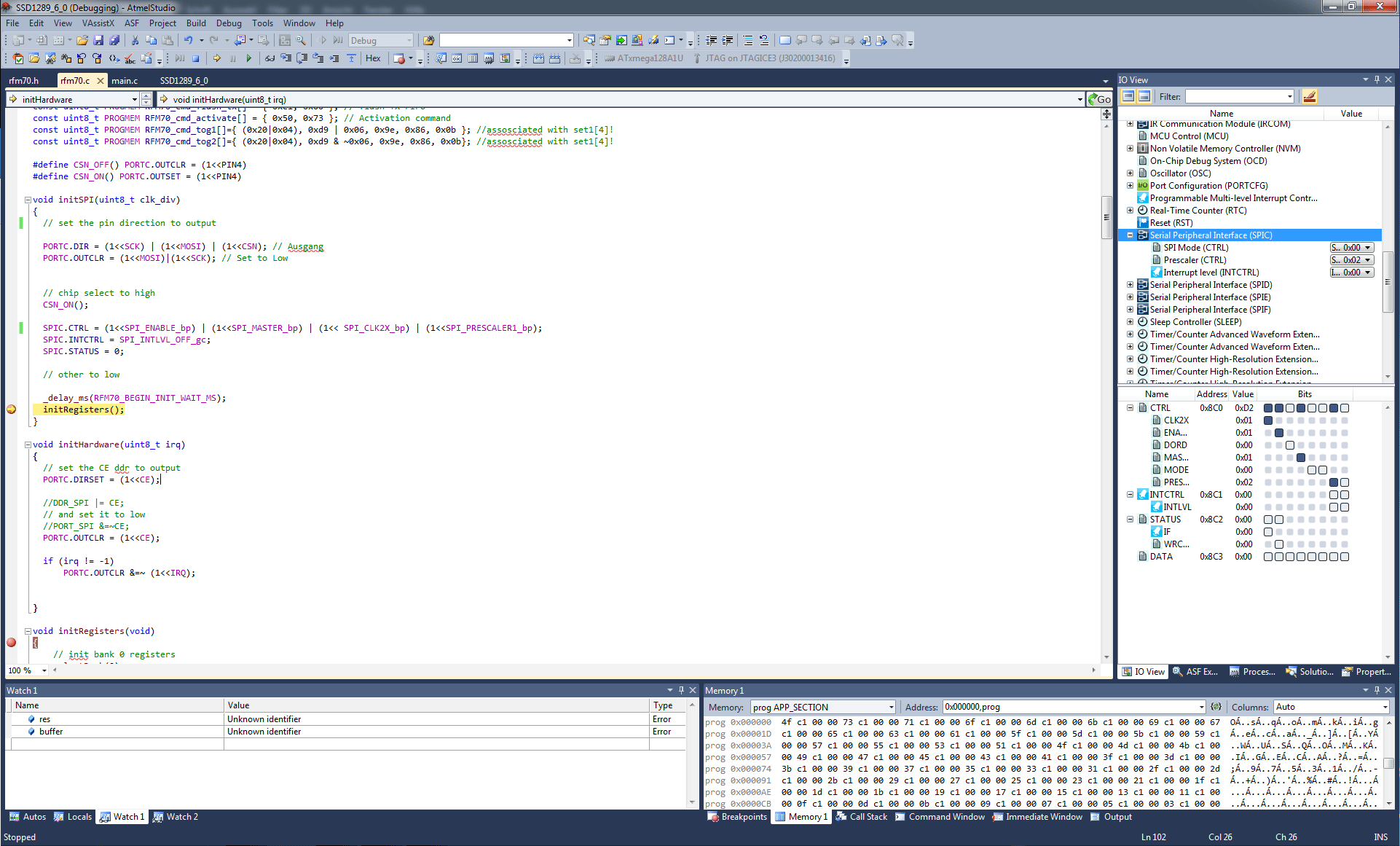

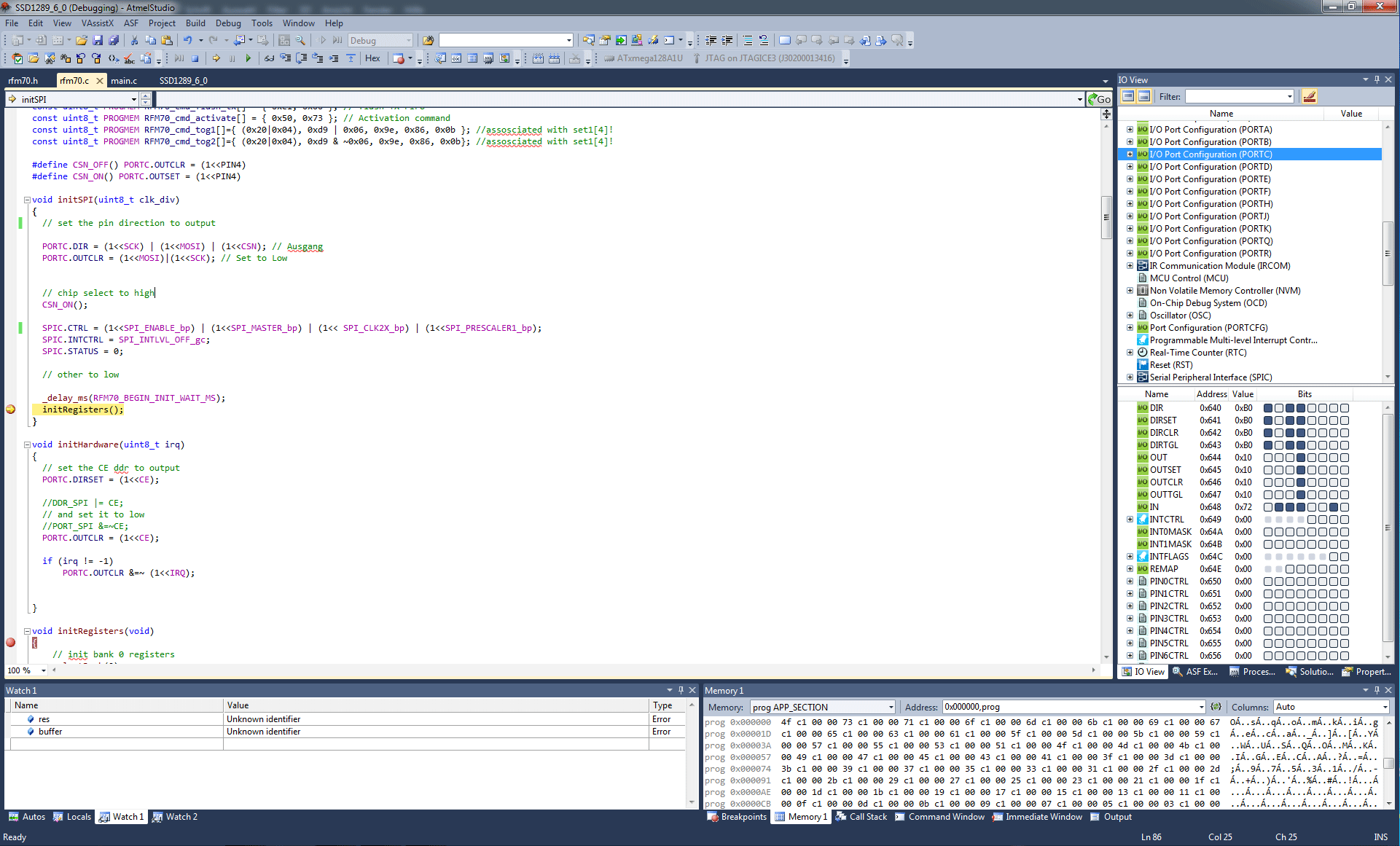

Die Ports nach der Initialisierung habe ich als Screenshot beigefügt.

Hier der aktuelle Code, bei dem die Initialisierung durchläuft und mir
die ChipID zurück gibt:

1
#include "rfm70.h"

2
#include "display/Graphics.h"

3
#include "display/display_lib.h"

4
///////////////////////////////////////////////////////////////////////////////

5
// Register initialization values and command macros //

6
///////////////////////////////////////////////////////////////////////////////

7


8
//************ Address definition commands

9
const uint8_t PROGMEM RFM70_cmd_adrRX0[] = { (0x20|0x0A), 0x34,0x43,0x10,0x10,0x01};

10
const uint8_t PROGMEM RFM70_cmd_adrTX[]  = { (0x20|0x10), 0x34,0x43,0x10,0x10,0x01};

11
const uint8_t PROGMEM RFM70_cmd_adrRX1[] = { (0x20|0x0B), 0x35,0x43,0x10,0x10,0x02};

12


13
//************ Bank0 register initialization commands

14
 const uint8_t PROGMEM RFM70_bank0Init[][2] = {

15
  // address data

16
  { (0x20|0x00), 0x0F }, //Disable CRC ,CRC=1byte, POWER UP, TX

17
  { (0x20|0x01), 0x3F }, //Enable auto acknowledgement data pipe0-5

18
  { (0x20|0x02), 0x3F }, //Enable RX Addresses pipe0-5

19
  { (0x20|0x03), 0x03 }, //RX/TX address field width 5byte

20
  { (0x20|0x04), 0x08 }, //x = 250 ms = 4000ms, y = 15 tries

21
  { (0x20|0x05), 0x17 }, //channel = 0x17

22
  { (0x20|0x06), 0x3F }, //air data rate-2M,out power 5dbm,setup LNA gain high (0dBM)

23
  { (0x20|0x07), 0x07 }, //

24
  { (0x20|0x08), 0x00 }, //

25
  { (0x20|0x09), 0x00 }, //

26
  { (0x20|0x0C), 0xc3 }, //LSB Addr pipe 2

27
  { (0x20|0x0D), 0xc4 }, //LSB Addr pipe 3

28
  { (0x20|0x0E), 0xc5 }, //LSB Addr pipe 4

29
  { (0x20|0x0F), 0xc6 }, //LSB Addr pipe 5

30
  { (0x20|0x11), 0x20 }, //Payload len pipe0

31
  { (0x20|0x12), 0x20 }, //Payload len pipe0

32
  { (0x20|0x13), 0x20 }, //Payload len pipe0

33
  { (0x20|0x14), 0x20 }, //Payload len pipe0

34
  { (0x20|0x15), 0x20 }, //Payload len pipe0

35
  { (0x20|0x16), 0x20 }, //Payload len pipe0

36
  { (0x20|0x17), 0x20 }, //Payload len pipe0

37
  { (0x20|0x1C), 0x3F }, //Enable dynamic payload legth data pipe0-5

38
  { (0x20|0x1D), 0x07 } //Enables Dynamic Payload Length,Enables Payload with ACK

39
};

40


41
//************ Bank1 register initialization commands

42
 const uint8_t PROGMEM RFM70_bank1Init[][5] = {

43
  // address data

44
  { (0x20|0x00), 0x40, 0x4B, 0x01, 0xE2 },

45
  { (0x20|0x01), 0xC0, 0x4B, 0x00, 0x00 },

46
  { (0x20|0x02), 0xD0, 0xFC, 0x8C, 0x02 },

47
  { (0x20|0x03), 0x99, 0x00, 0x39, 0x41 },

48
  { (0x20|0x04), 0xb9, 0x9E, 0x86, 0x0B }, // b9? f9?

49
  { (0x20|0x05), 0x24, 0x06, 0x7F, 0xA6 },

50
  { (0x20|0x06), 0x00, 0x00, 0x00, 0x00 },

51
  { (0x20|0x07), 0x00, 0x00, 0x00, 0x00 },

52
  { (0x20|0x08), 0x00, 0x00, 0x00, 0x00 },

53
  { (0x20|0x09), 0x00, 0x00, 0x00, 0x00 },

54
  { (0x20|0x0a), 0x00, 0x00, 0x00, 0x00 },

55
  { (0x20|0x0b), 0x00, 0x00, 0x00, 0x00 },

56
  { (0x20|0x0C), 0x00, 0x12, 0x73, 0x00 },

57
  { (0x20|0x0D), 0x36, 0xb4, 0x80, 0x00 }

58
};

59


60
//************ Bank1 register 14 initialization commands

61
 const uint8_t PROGMEM RFM70_bank1R0EInit[] = {

62
  // address Data...

63
  (0x20|0x0E), 0x41,0x20,0x08,0x04,0x81,0x20,0xCF,0xF7,0xFE,0xFF,0xFF

64
};

65
66
67
//************ other commands: { <command>, <data>, ... }

68
const uint8_t PROGMEM RFM70_cmd_switch_cfg[] = { 0x50, 0x53 }; // switch Register Bank

69
const uint8_t PROGMEM RFM70_cmd_flush_rx[] = { 0xe2, 0x00 }; // flush RX FIFO

70
const uint8_t PROGMEM RFM70_cmd_flush_tx[] = { 0xe1, 0x00 }; // flush TX FIFO

71
const uint8_t PROGMEM RFM70_cmd_activate[] = { 0x50, 0x73 }; // Activation command

72
const uint8_t PROGMEM RFM70_cmd_tog1[]={ (0x20|0x04), 0xd9 | 0x06, 0x9e, 0x86, 0x0b }; //assosciated with set1[4]!

73
const uint8_t PROGMEM RFM70_cmd_tog2[]={ (0x20|0x04), 0xd9 & ~0x06, 0x9e, 0x86, 0x0b}; //assosciated with set1[4]!

74
75
#define CSN_OFF() PORTC.OUTCLR = (1<<PIN4)

76
#define CSN_ON() PORTC.OUTSET = (1<<PIN4)

77
78
void initSPI(uint8_t clk_div)

79
{

80
  // set the pin direction to output

81


82
  PORTC.DIR = (1<<SCK) | (1<<MOSI) | (1<<CSN); // Ausgang

83
  PORTC.OUTCLR = (1<<MOSI)|(1<<SCK); // Set to Low

84


85


86
  // chip select to high

87
  CSN_ON();

88


89
  SPIC.CTRL = (1<<SPI_ENABLE_bp) | (1<<SPI_MASTER_bp) | (1<< SPI_CLK2X_bp) | (1<<SPI_PRESCALER1_bp);

90
  SPIC.INTCTRL = SPI_INTLVL_OFF_gc;

91
  SPIC.STATUS = 0;

92
93
  // other to low

94


95
  _delay_ms(RFM70_BEGIN_INIT_WAIT_MS);

96
  initRegisters();

97
}

98
99
void initHardware(uint8_t irq)

100
{

101
  // set the CE ddr to output

102
  PORTC.DIRSET = (1<<CE);

103


104
  //DDR_SPI |= CE;

105
  // and set it to low

106
  //PORT_SPI &=~CE;

107
  PORTC.OUTCLR = (1<<CE);

108


109
  if (irq != -1)

110
      PORTC.OUTCLR &=~ (1<<IRQ);

111
112
113
}

114
115
void initRegisters(void)

116
{

117
    // init bank 0 registers

118
    selectBank(0);

119
120
  for (int i = 0; i < 20; i++)

121
      writeRegVal(pgm_read_byte(&RFM70_bank0Init[i][0]), pgm_read_byte(&RFM70_bank0Init[i][1]));

122
123
124
    // init address registers in bank 0

125
    writeRegPgmBuf((uint8_t *)RFM70_cmd_adrRX0, sizeof(RFM70_cmd_adrRX0));

126
    writeRegPgmBuf((uint8_t *)RFM70_cmd_adrRX1, sizeof(RFM70_cmd_adrRX1));

127
    writeRegPgmBuf((uint8_t *)RFM70_cmd_adrTX, sizeof(RFM70_cmd_adrTX));

128
129
  // activate Feature register

130
    if(!readRegVal(RFM70_REG_FEATURE))

131
      writeRegPgmBuf((uint8_t *)RFM70_cmd_activate, sizeof(RFM70_cmd_activate));

132
133
  // now set Registers 1D and 1C

134
    writeRegVal(pgm_read_byte(&RFM70_bank0Init[22][0]), pgm_read_byte(&RFM70_bank0Init[22][1]));

135
    writeRegVal(pgm_read_byte(&RFM70_bank0Init[21][0]), pgm_read_byte(&RFM70_bank0Init[21][1]));

136
137
    // init bank 1 registers

138
    selectBank(1);

139
140
    for (int i=0; i < 14; i++)

141
      writeRegPgmBuf((uint8_t *)RFM70_bank1Init[i], sizeof(RFM70_bank1Init[i]));

142
143
  // set ramp curve

144
    writeRegPgmBuf((uint8_t *)RFM70_bank1R0EInit, sizeof(RFM70_bank1R0EInit));

145
146
147
    // do we have to toggle some bits here like in the example code?

148
    writeRegPgmBuf((uint8_t *)RFM70_cmd_tog1, sizeof(RFM70_cmd_tog1));

149
    writeRegPgmBuf((uint8_t *)RFM70_cmd_tog2, sizeof(RFM70_cmd_tog2));

150
151
  _delay_ms(RFM70_END_INIT_WAIT_MS);

152
153
    //Check the ChipID

154
    if (readRegVal(0x08) != 0x63)

155
      debug(RFM70_DEBUG_WRONG_CHIP_ID);

156
  else

157
  ScrollText("load rfm70 register successful\n", to_rgb565(255,255,255));

158
159
    selectBank(0);

160
  setModeRX();

161
}

162
163
void Begin(void)

164
{

165
  setBegin(-1, RFM77_DEFAULT_SPI_CLOCK_DIV);

166
}

167
168
169
void setBegin(uint8_t irq, uint8_t clk_div)

170
{

171
    initHardware(irq);

172
    initSPI(clk_div);

173
    //_delay_ms(RFM70_BEGIN_INIT_WAIT_MS);

174
    //initRegisters();

175
 }

176
177
178
179
uint8_t transmitSPI(uint8_t val)

180
{

181
  SPIC.DATA = val;

182
  while (!(SPIC.STATUS & (1<<SPI_IF_bp)))

183
    ;

184
  return SPIC.DATA;

185
}

186
187
void selectBank(uint8_t bank)

188
{

189
    uint8_t tmp = readRegVal(0x07) & 0x80;

190
    if(bank)

191
  {

192
      if(!tmp)

193
        writeRegPgmBuf((uint8_t *)RFM70_cmd_switch_cfg, sizeof(RFM70_cmd_switch_cfg));

194
    }

195
    else

196
  {

197
      if(tmp)

198
          writeRegPgmBuf((uint8_t *)RFM70_cmd_switch_cfg, sizeof(RFM70_cmd_switch_cfg));

199
    }

200
}

201
202
void setMode(uint8_t mode)

203
{

204
  if (mode == 1)

205
    setModeRX();

206
  else

207
    setModeTX();

208
}

209
210
211
void setModeRX(void)

212
{

213
  uint8_t val;

214
215
  writeRegPgmBuf((uint8_t *)RFM70_cmd_flush_rx, sizeof(RFM70_cmd_flush_rx)); // Flush RX FIFO

216
  val = readRegVal(RFM70_REG_STATUS); // Read Status

217
  writeRegVal(RFM70_CMD_WRITE_REG | RFM70_REG_STATUS, val); // Reset IRQ bits

218
  PORTC.OUTCLR &=~ (1<<CE); // RFM chip disable

219
  // set PRIM_RX bit to 1

220
  val=readRegVal(RFM70_REG_CONFIG);

221
  val |= RFM70_PIN_PRIM_RX;

222
  writeRegVal(RFM70_CMD_WRITE_REG | RFM70_REG_CONFIG, val);

223
  PORTC.OUTSET |= (1<<CE); // RFM chip enable

224
}

225
226
227
void setModeTX(void)

228
{

229
    uint8_t val;

230
231
    writeRegPgmBuf((uint8_t *)RFM70_cmd_flush_tx, sizeof(RFM70_cmd_flush_tx)); // Flush TX FIFO

232
    PORTC.OUTCLR &=~ (1<<CE); // disable rfm70

233
    // set PRIM_RX bit to 0

234
    val=readRegVal(RFM70_REG_CONFIG);

235
    val &= ~RFM70_PIN_PRIM_RX;

236
    writeRegVal(RFM70_CMD_WRITE_REG | RFM70_REG_CONFIG, val);

237
    PORTC.OUTSET |= (1<<CE); // RFM chip enable

238
}

239
240
uint8_t getMode(void)

241
{

242
  return readRegVal(RFM70_REG_CONFIG) & RFM70_PIN_PRIM_RX;

243
}

244
245
246
void setChannel(uint8_t cnum)

247
{

248
  writeRegVal( RFM70_CMD_WRITE_REG | RFM70_REG_RF_CH, cnum);

249
}

250
251
uint8_t getChannel(void)

252
{

253
  return readRegVal(RFM70_REG_RF_CH);

254
}

255
256
257
uint8_t configRxPipe(uint8_t pipe_nr, uint8_t * adr, uint8_t plLen, uint8_t en_aa)

258
{

259
260
    uint8_t tmp;

261
    uint8_t nr = pipe_nr -1;

262


263
    if(plLen > 32 || nr > 5 || en_aa > 1)

264
      return 0;

265
266
    // write address

267
    if(nr<2)      // full length for rx pipe 0 an 1

268
      writeRegCmdBuf(RFM70_CMD_WRITE_REG | (RFM70_REG_RX_ADDR_P0 + nr), adr, sizeof(adr));

269
    else // only LSB for pipes 2..5

270
      writeRegVal(RFM70_CMD_WRITE_REG | (RFM70_REG_RX_ADDR_P0 + nr), adr[0]); //ODO:check this

271


272
    // static

273
    if (plLen) {

274
      // set payload len

275
      writeRegVal(RFM70_CMD_WRITE_REG | (RFM70_REG_RX_PW_P0 + nr), plLen);

276
          // set EN_AA bit

277
        tmp = readRegVal(RFM70_REG_EN_AA);

278
          if (en_aa)

279
              tmp |= 1 << nr;

280
          else

281
                tmp &= ~(1 << nr);

282
        writeRegVal(RFM70_CMD_WRITE_REG | RFM70_REG_EN_AA, tmp);

283
        // clear DPL bit

284
        tmp = readRegVal(RFM70_REG_DYNPD);

285
        tmp &= ~(1 << nr);

286
        writeRegVal(RFM70_CMD_WRITE_REG | RFM70_REG_DYNPD, tmp);

287
        // set Enable pipe bit

288
        enableRxPipe(nr);

289
  }

290
    // dynamic

291
    else

292
  {

293
        // set payload len to default

294
        writeRegVal(RFM70_CMD_WRITE_REG | (RFM70_REG_RX_PW_P0 + nr), 0x20);

295
          // set EN_AA bit

296
          tmp = readRegVal(RFM70_REG_EN_AA);

297
          tmp |= 1 << nr;

298
          writeRegVal(RFM70_CMD_WRITE_REG | RFM70_REG_EN_AA, tmp);

299
          // set DPL bit

300
          tmp = readRegVal(RFM70_REG_DYNPD);

301
          tmp |= 1 << nr;

302
          writeRegVal(RFM70_CMD_WRITE_REG | RFM70_REG_DYNPD, tmp);

303
          // set Enable pipe bit

304
          enableRxPipe(nr);

305
    }

306
  return 1;

307
}

308
309
void enableRxPipe(uint8_t pipe_nr)

310
{

311
    uint8_t nr = pipe_nr - 1;

312
    if (nr > 5) return;

313
    uint8_t tmp;

314
    // set Enable pipe bit

315
    tmp = readRegVal(RFM70_REG_EN_RXADDR);

316
    tmp |= 1 << nr;

317
    writeRegVal(RFM70_CMD_WRITE_REG | RFM70_REG_EN_RXADDR, tmp);

318
}

319
320
void disableRxPipe(uint8_t pipe_nr)

321
{

322
  uint8_t nr = pipe_nr - 1;

323
  if (nr > 5) return;

324
  uint8_t tmp;

325
  // set Enable pipe bit

326
  tmp = readRegVal(RFM70_REG_EN_RXADDR);

327
  tmp &= ~(1 << nr);

328
  writeRegVal(RFM70_CMD_WRITE_REG | RFM70_REG_EN_RXADDR, tmp);

329
330
}

331
332
void configTxPipe(uint8_t * adr, uint8_t pltype)

333
{

334
  // write TX address

335
  writeRegCmdBuf(RFM70_CMD_WRITE_REG | RFM70_REG_TX_ADDR, adr, sizeof(adr));

336
  // write RX0 address

337
  writeRegCmdBuf(RFM70_CMD_WRITE_REG | RFM70_REG_RX_ADDR_P0, adr, sizeof(adr));

338
  // set static or dynamic payload

339
  uint8_t tmp;

340
  tmp = readRegVal(RFM70_REG_DYNPD);

341
  if(pltype == TX_DPL) // dynamic

342
        tmp |= 1;

343
  else

344
    tmp &= ~(1 << 0);

345
  writeRegVal(RFM70_CMD_WRITE_REG | RFM70_REG_DYNPD, tmp);

346
}

347
348
uint8_t sendPayload(uint8_t * payload, uint8_t len, uint8_t toAck)  // choose 0=nAck, 1=AckRequest

349
{

350


351
    // check TX_FIFO

352
    uint8_t status;

353
    status = readRegVal(RFM70_REG_FIFO_STATUS);

354
    if (status & RFM70_FIFO_STATUS_TX_FULL)

355
  {

356
      debug(RFM70_DEBUG_FIFO_FULL);

357
      return 0;

358
    }

359
360
    // send payload

361
  CSN_OFF();

362
    _delay_ms(RFM70_CS_DELAY);

363
    if(toAck == -1)

364
      transmitSPI(RFM70_CMD_W_ACK_PAYLOAD);

365
    else if (toAck == 0)

366
      transmitSPI(RFM70_CMD_W_TX_PAYLOAD_NOACK);

367
    else

368
      transmitSPI(RFM70_CMD_WR_TX_PLOAD);

369
    while(len--)

370
  {

371
      transmitSPI(*(payload++));

372
    //ScrollText(*payload, to_rgb565(255,255,255));

373
    }

374
  CSN_ON();

375
    _delay_ms(RFM70_CS_DELAY);

376
  //PORTA ^= (1<<PA4);

377
    return 1;

378
}

379
380
uint8_t receivePayload(uint8_t *payload)

381
{

382
    uint8_t len;

383
    // check RX_FIFO

384
    uint8_t status;

385
    status = readRegVal(RFM70_REG_STATUS);

386
    if (status & RFM70_IRQ_STATUS_RX_DR) { // RX_DR

387
    //PORTA ^= (1<<PA4);

388
      //while(1) {

389
        uint8_t fifo_sta;

390
        len = readRegVal(RFM70_CMD_RX_PL_WID); // Payload width

391
        readRegBuf(RFM70_CMD_RD_RX_PLOAD, payload, len);

392
        fifo_sta = readRegVal(RFM70_REG_FIFO_STATUS);

393
        //if (fifo_sta & RFM70_FIFO_STATUS_RX_EMPTY) break; // read until RX_FIFO empty

394
      //}

395


396
        if (fifo_sta & RFM70_FIFO_STATUS_RX_EMPTY) {

397
          status|= 0x40 & 0xCF; // clear status bit rx_dr

398
        writeRegVal(RFM70_CMD_WRITE_REG | RFM70_REG_STATUS, status);

399
        }

400
      return len;

401
    }

402
    else

403
  {

404


405
      return 0;

406
  }

407
}

408
409
410
void flushTxFIFO()

411
{

412
  writeRegPgmBuf((uint8_t *)RFM70_cmd_flush_tx, sizeof(RFM70_cmd_flush_tx)); // Flush TX FIFO

413
}

414
415
void flushRxFIFO()

416
{

417
  writeRegPgmBuf((uint8_t *)RFM70_cmd_flush_rx, sizeof(RFM70_cmd_flush_rx)); // Flush RX FIFO

418
}

419
420
421
422
423
424
uint8_t readRegVal(uint8_t cmd)

425
{

426
    uint8_t res;

427
  CSN_OFF();

428
    _delay_ms(RFM70_CS_DELAY);

429
430
    transmitSPI(cmd);

431
432
    res=transmitSPI(0);

433
    CSN_ON();

434
    _delay_ms(RFM70_CS_DELAY);

435
    return res;

436
}

437
438
uint8_t writeRegVal(uint8_t cmd, uint8_t val)

439
{

440
  CSN_OFF();

441
  _delay_ms(RFM70_CS_DELAY);

442
  transmitSPI(cmd);

443
  transmitSPI(val);

444
  CSN_ON();

445
  _delay_ms(RFM70_CS_DELAY);

446
  return 1;

447
}

448
449
void readRegBuf(uint8_t reg, uint8_t * buf, uint8_t len)

450
{

451
    uint8_t status, byte_ctr;

452
    CSN_OFF();

453
    _delay_ms(RFM70_CS_DELAY);

454
    status = transmitSPI(reg); // Select register to write, and read status UINT8

455
    for(byte_ctr = 0; byte_ctr < len; byte_ctr++)

456
       buf[byte_ctr] = transmitSPI(0); // Perform SPI_RW to read UINT8 from RFM70

457
    CSN_ON();

458
    _delay_ms(RFM70_CS_DELAY);

459
}

460
461
462
463
uint8_t writeRegPgmBuf(uint8_t * cmdbuf, uint8_t len)

464
{

465
  CSN_OFF();

466
  _delay_ms(RFM70_CS_DELAY);

467
  while(len--) {

468
    transmitSPI(pgm_read_byte(cmdbuf++));

469
  }

470
  CSN_ON();

471
  _delay_ms(RFM70_CS_DELAY);

472
  return 1;

473
}

474
475
uint8_t writeRegCmdBuf(uint8_t cmd, uint8_t * buf, uint8_t len)

476
{

477
    CSN_OFF();

478
    _delay_ms(RFM70_CS_DELAY);

479
    transmitSPI(cmd);

480
    while(len--)

481
  {

482
      transmitSPI(*(buf++));

483
    }

484
    CSN_ON();

485
    _delay_ms(RFM70_CS_DELAY);

486
  return 1;

487
}

488
489
void configRfPower(uint8_t pwr)

490
{

491
  if (pwr > 3) return;

492
  uint8_t tmp = readRegVal(RFM70_REG_RF_SETUP);

493
  tmp &= 0xF9;

494
  tmp |= pwr << 1;

495
  writeRegVal(RFM70_CMD_WRITE_REG | RFM70_REG_RF_SETUP, tmp);

496
}

497
498
499
500
501
void debug(uint8_t token)

502
{

503
  switch(token)

504
  {

505
    case 0x01:

506
    ScrollText("rfm error: the reseive chip id is invalid!\n", to_rgb565(255,255,255));

507
    break;

508
509
    case 0x02:

510
    ScrollText("rfm error: the fifo is full!\n", to_rgb565(255,255,255));

511
    break;

512
  }

513
}

514
515
void spiSetClockDivider(uint8_t rate)

516
{

517
  //SPIC.CTRL = (SPIC.CTRL & ~SPI_CLOCK_MASK) | (rate & SPI_CLOCK_MASK);

518
  //SPIC.STATUS = (SPIC.STATUS & ~SPI_2XCLOCK_MASK) | ((rate >> 2) & SPI_2XCLOCK_MASK);

519
}












    Beitrag melden Bearbeiten Löschen Markierten Text zitieren Antwort Antwort mit Zitat
















    Re: ATxmega128a1 und RFM70 Problem.







      von

        Timmo H.
        (masterfx)
























  Lesenswert?


  •

  ▲


  ▼









>PORTC.OUTCLR &=~ (1<<CE)
Schau dir nochmal das Datenblatt des xmegas an. Da passiert nicht das
was du glaubst











    Beitrag melden Bearbeiten Löschen Markierten Text zitieren Antwort Antwort mit Zitat
















    Re: ATxmega128a1 und RFM70 Problem.







      von

        Daniel S.
        (sany)
























  Lesenswert?


  •

  ▲


  ▼









Hallo Timmo,

Danke ;-)

Hab das Problem nun gelöst, da war wohl ein Pin nicht ganz auf Output
gestellt :-)


Grüße,
Daniel











    Beitrag melden Bearbeiten Löschen Markierten Text zitieren Antwort Antwort mit Zitat













       Thread beobachten

      |
         Seitenaufteilung abschalten






Bitte melde dich an um einen Beitrag zu schreiben. Anmeldung ist kostenlos und dauert nur eine Minute.



  Bestehender Account









































  Schon ein Account bei Google/GoogleMail? Keine Anmeldung erforderlich!

  Mit Google-Account einloggen






  Noch kein Account? Hier anmelden.
